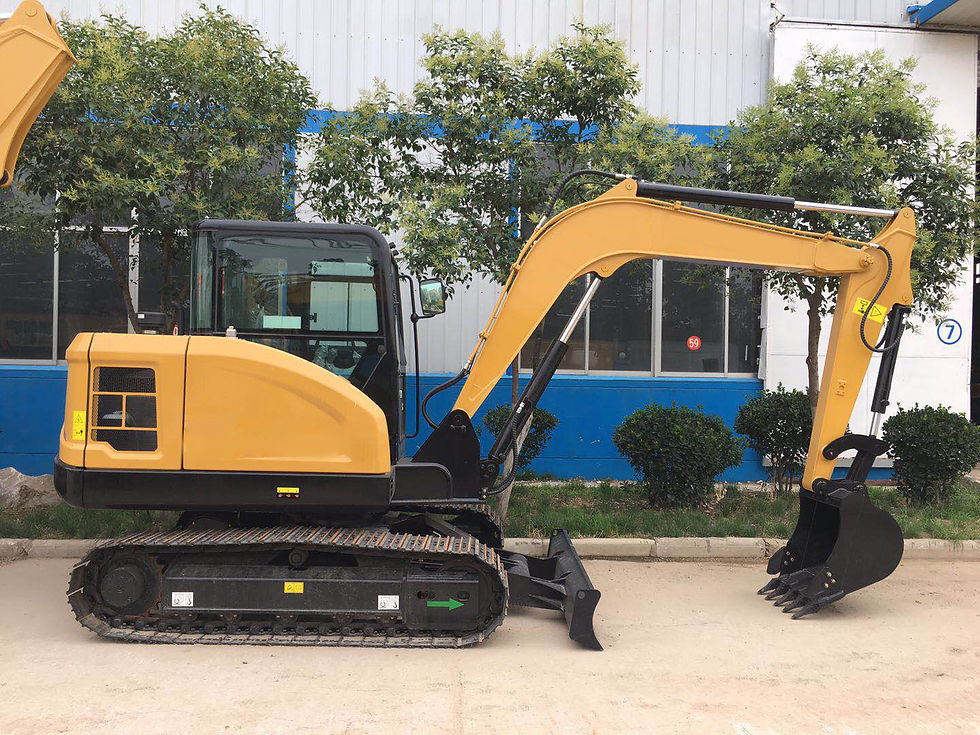

ERE60 EXCAVATOR
Everun's excavators , after purchase are guaranteed with a 1 year warranty and full customer support.
1. Originally imported Yanmar engine 4TNV94 (36.2KW/2100rpm), low noise, low fuel consumption, big torque.
2. Main pump, valve, swing motor and travel motor are equipped with originally imported KYB.
3. Adopt multifunctional design to make users change accessory equipment such as wide and narrow bucket breaker, breaker and hydraulic clipper etc.
4. Cab installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system etc, not only make operation convenient, natural and precise, but also reduce working fatigue of operator.
5. GPS and remote diagnosis system ensure maintenance timely.
TECHNICAL PARAMETERS
FEATURE SIZE / DETAILS
Term No. ERE60 Engine Model Yanmar 4TNV94L Engine Type Direct Injection, 4 Stroke, Water Cooled, Natural Intake No. of Cylinder 4 Bore And Stroke 94X110(mm) Power Output 36.2kW/2100rpm Displacement 3.054L Max. Torque 193.2～210.6N.m/1260±100 rpm Travel Motors KYB, Japan Travel Speed 2.5/4.0(km/h) Track Shoes Thickness 6mm Bucket Capacity 0.22m³ Number Of Bucket Teeth 5 Bucket Width 750 mm Operating Weight 5820kg Parking Brake Hydraulic Disc Brake Swing speed 10 r/min Fuel Tank 125L Cooling System 15L Engine Oil 10.5L Boom Cylinder Φ110xΦ65xS720-L1095 Arm Cylinder Φ85xΦ55xS880-L1280 Boom Length 3050mm Max. Digging Height 5889mm Max. Dumping Height 4201mm Max. Digging Depth 3812mm Max. Vertical Digging Depth 3008mm Max. Digging Distance 6257mm Overall Length 5943mm Bucket Cylinder Φ80xΦ50xS600-L925 EXTRA OPTIONAL EQUIPMENT
- Quick hitch
- Side shift
- Free list
ATTACHEMENTS
- Hammer
- Grapple froks
- Auger (200mm standard)
- Bucket (all kind of sizes)
- Ripper
- Grapple pallete
OPTIONAL ENGINES
- Kubota D1105 Euro5/EPA4 engine
- Yammar Euro3
